Top-Notch Performance with the Xorcom CXW4000 Blue Steel

When your business or organization operates in a fast-paced and high-pressure environment, you need a high-capacity PBX that can support all essential communication functions. The Xorcom CXW4000 Blue Steel X is built for mission-critical industries, ensuring superior voice quality, redundancy, and enterprise-level performance for businesses that can’t afford downtime.

Robust Phone System for High-Demand Settings

The Xorcom CXW4000 Blue Steel X is an enterprise-grade PBX in hotels, hospitals, large corporations, call centers. and other high-demand environments. This powerful PBX system supports thousands of users and concurrent calls, providing complete redundancy, failover protection, and seamless integration with existing networks.

Designed to handle heavy call traffic, this VoIP PBX system ensures smooth, high-quality conversations even during peak business hours. Whether you need a PBX system in hospitals for high volumes of patient and doctor calls or a resilient telephony solution for BPOs, the Xorcom CXW4000 guarantees reliability, security, and scalability.

How Your Business Benefits From the Xorcom CXW4000

Kital provides telephony solutions to enterprises in the Philippines. Here’s how we keep organizations competitive and connected:

High User Capacity

This high-capacity PBX supports thousands of users, making it the perfect solution for businesses with large teams and complex communication needs.

High Concurrent Call Capacity

Designed to handle heavy call traffic, this hospital PBX ensures smooth, high-quality conversations even during peak business hours.

Designed for Demanding Environments

PBX in hotels, call centers, and other high-demand settings requires exceptional stability, making it ideal for industries that require uninterrupted communication.

Integrated Hardware and Software

The Xorcom Falcon CXW4000 Blue Steel X seamlessly combines heavy-duty hardware with powerful software, delivering an all-in-one telephony solution that enhances efficiency and security.

Blue Steel X Enterprise-Grade CompletePBX Telephony System Data Sheet

Features

Unlimited voicemail boxes, hunt groups, call center groups, and auto attendants (IVRs)
Basic built-in call center with call recording, barge and whisper
Hot-desking
Sophisticated Classes of Service for enhanced security
Emergency notification module
Endpoint manager
User-friendly Web interface
Interface in different languages
CDR (Call Details Record)
TDM/SIP/IAX trunks
Remote extensions
Voicemail
Voicemail to email
Web access to voicemail
Fax support
Fax to email
IVR menu system
Ring groups
Call queues
Conference rooms
Follow me
Time-based routing
Advanced dialing rules
Music-on-hold
Paging and intercom
Admin status screen
Package manager (for easy updates)
Network settings tool

Software

Management Interface Xorcom CompletePBX

Linux versionDebian 12

Framework Asterisk

Security Intrusion protection software; firewall protection

TwinStar Plus™ (optional) High availability solution for CompletePBX systems

Hardware

Processor Intel Xeon E-2434 12MB Cache (3.4 GHz)

RAM 16GB, DDR5 ECC

Storage 2 x 500 GB NVMe PCIe Gen4 SSD (RAID1)

IPMI Intelligent Platform Management Interface (IPMI)

RAID1 Dual NVMe SSD for increased system reliability

Cooling Variable speed fan array

Echo Cancellation Module Voice enhancement & echo cancellation (optional)

USB 4 on the rear panel and 1 on the front panel

Telephony

Maximum number of concurrent calls 1,350 (SIP only); 750 (PRI + FXS)

Number of users 2,000 (default license) – 3,000

Maximum number of built-in analog ports 16 (additional ports with external Astribank units)

Number of built-in E1 / T1 ports 4 (up to 120 concurrent PRI/R2/CAS calls)

Max. telephony modules supported internally 2 (additional ports are supported by adding Astribanks and/or IP gateways)

Maximum number of telephony ports supported internally 128 (4xE1 PRI/R2/CAS + 8 analog ports)

Supported Xorcom telephony modules

8 ports FXS
8 ports FXO
Up to 4 ports PRI/R2/CAS
Up to 8 ports BRI ISDN

Power

Power supplyTwo internal, redundant, hot-swappable units

VoltageAuto-adjust 100/240 Volts, 50/60 Hz

Power consumption230 Watts (maximum) 80 W (Typical)

Built-in grounding connection ☑

Network

Ethernet port – standard 4 x 10/100/1000 Mb/s

Maintenance and Support

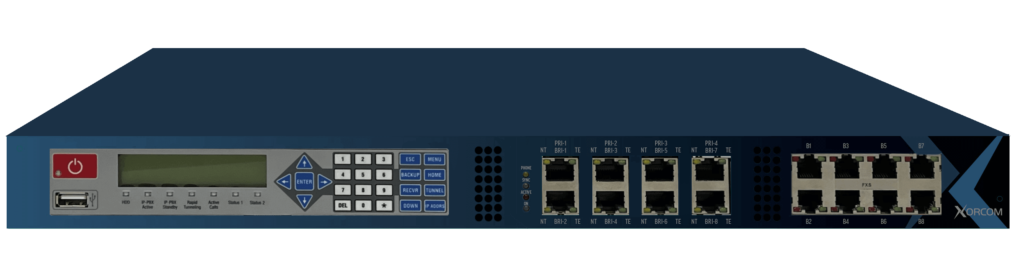

LCD (Liquid Crystal Display) touch panel, supporting:
- Status of active systems, including:
  - All configured IP addresses
  - TwinStar™ (dual-server redundancy)
  - Redundant Power Supply (when configured)
  - Blink ports (extensions, channels, XPD and SPAN)
  - Active calls
  - RAID status
Maintenance issues, including:
- Asterisk restart
- DAHDI restart
- Server reboot
- Server power off
- Email alerts (RAID, Power supply and other issues)
Settings, including:
- Enable/disable DHCP
- Manual IP configuration
Monitor and keyboard support
Internal backup & restore utility
External Rapid Recovery™ backup utility (provided on disk-on-key)
Software updates

Environment

Storage temperature -20° to 70° Celsius (-4°-158° F)

Working temperature 0° to 40° Celsius (32°-104° F)

Humidity 20%-95%, non-condensing

Dimensions and Weight

Weight 5.1 Kg (11.2 lbs)*

* May vary slightly, depending on configuration

Size 19” 1U industry standard rack-mountable chassis

Dimensions 44.2 x 44.2 x 4.45 cm (17.4 x 17.4 x 1.75”)

Specifications may change without prior notice.

Industries Supported by the Xorcom CXW4000

The Xorcom CXW4000 large-scale PBX is tailored for industries that demand high availability and scalability, including:

Hotels and hospitality
Healthcare and hospitals
Call centers
Corporate enterprises
Government organizations

Upgrade to the Xorcom CXW4000 Blue Steel X—the PBX for hotels and hospitals that guarantees performance, security, and unmatched reliability.
